Proper connection of gigabit fiber optic patch cords requires careful handling, cleaning, correct connector mating, and adherence to bend-radius and routing standards to ensure low signal loss and reliable network performance.

Step 1: Verify Cable and Connector Compatibility

Before connecting, ensure the fiber type matches the transceiver module: single-mode (OS2) for long distances or multi-mode (OM3/OM4) for shorter distances. Connector types must also match, such as LC, SC, or MPO/MTP, and SC/APC and SC/UPC connectors must not be cross-mated due to incompatible endface geometry .

Step 2: Inspect and Clean Connectors

Every connector should be inspected for scratches, dirt, or contamination. Clean connectors immediately before mating using approved fiber cleaning tools or wipes. Even minor dust can cause significant insertion loss or return loss, degrading gigabit performance .

Step 3: Proper Handling and Routing

• Avoid excessive bending: Follow minimum bend-radius rules (typically 10× the cable diameter for patch cords) to prevent microbends and signal attenuation .
• Prevent physical stress: Do not twist, crush, or pull the cable sharply.

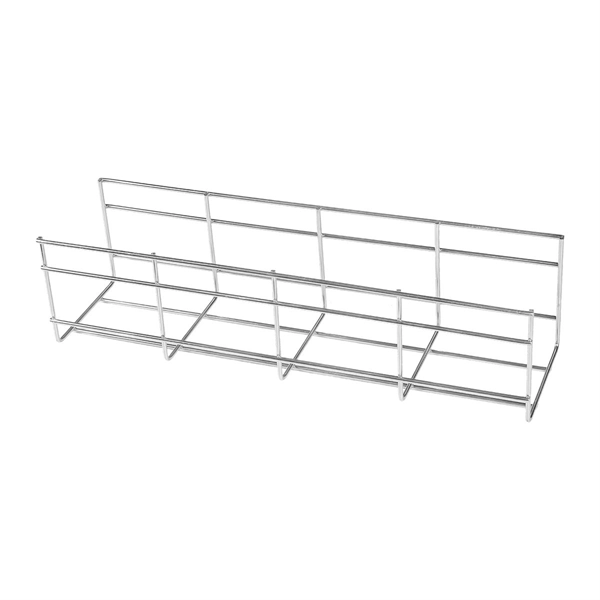

• Use structured routing: Keep patch cords organized in racks or trays to reduce strain and simplify maintenance .

Step 4: Connector Mating

• Align the connector carefully with the port and insert until it clicks.
• Ensure firm, stable connections without forcing the connector.
• Avoid repeated mating and unmating, which can wear the ferrule and increase loss .

Step 5: Labeling and Documentation

• Label both ends of the patch cord for traceability in data centers or FTTH cabinets.
• Maintain documentation to prevent mis-patching and simplify troubleshooting during network upgrades .

Step 6: Environmental Considerations

• Work in a dust-free environment when possible.
• Use LSZH jackets for indoor installations and PE-jacketed OS2 cables for outdoor use to comply with safety and performance standards .

Summary

Connecting gigabit fiber optic patch cords correctly involves matching fiber types and connectors, cleaning and inspecting connectors, careful routing, proper mating, and labeling. Following these steps ensures low insertion loss, stable return loss, and long-term network reliability, which is critical for high-speed gigabit networks .
