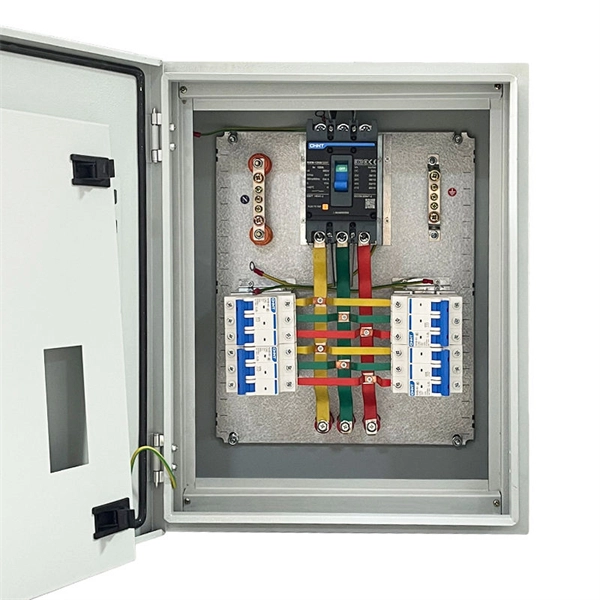

Electrical wires in distribution boxes must comply with recognized standards such as NEC, IEC, or local codes, using high-temperature resistant copper conductors with appropriate cross-sectional area for the load.

Wire Type and Material

The most commonly used wires in distribution boxes are copper conductors due to their high conductivity and reliability. High-temperature resistant insulation is required to prevent degradation under load and heat conditions . Aluminum conductors may be used in some industrial applications but require careful connection to prevent oxidation and overheating.

Cross-Sectional Area and Current Rating

The cross-sectional area of the wire must match the expected load current to prevent overheating and fire hazards. Residential circuits typically use 1.5–2.5 mm² for lighting and 4–6 mm² for power outlets, while industrial circuits may require larger sizes depending on the load . The wire gauge should also comply with NEC or IEC tables for ampacity.

Insulation and Safety

Wires must have proper insulation rated for the system voltage and temperature. Common insulation types include PVC, XLPE, or thermoplastic materials. All conductors entering the distribution box should be protected from abrasion, and openings must be sealed to prevent exposure . Grounding is mandatory: the metal enclosure, electrical board, and all metallic parts must be reliably grounded, and a protective neutral wire should be connected through the terminal board .

Standards and Compliance

• NEC (National Electrical Code, ANSI/NFPA 70): Provides detailed requirements for conductor types, insulation, grounding, and overcurrent protection .
• IEC Standards (IEC 61439, IEC 60670, IEC 60898, IEC 61008, IEC 61009): Cover low-voltage switchgear, enclosures, and protective devices .
• UL/CE Certification: Ensures components meet safety and performance requirements .
• Local Codes: Always follow regional regulations for wire sizing, insulation, and installation practices.

Installation Practices

• Turn off power before wiring.
• Use neat cable management and label all circuits.
• Ensure no copper wire is exposed and all connections are secure.
• Include overcurrent protection devices such as MCBs, RCDs, or fuses for each circuit .
• Maintain proper spacing and avoid overcrowding to allow heat dissipation.

Special Considerations

In flammable or explosive environments, use explosion-proof distribution boxes and wires rated for hazardous locations . For outdoor installations, select wires with UV and moisture-resistant insulation. By following these standards and practices, electrical wiring in distribution boxes will be safe, reliable, and compliant with international and local regulations.
