Surface-mounted fiber optic panels are installed by preparing the site, securely mounting the panel, routing and terminating cables, and performing testing to ensure optimal connectivity.

Site Preparation

Before installation, conduct a site survey to assess the wall or surface, identify cable routes, and determine termination points. Ensure the area is free of obstacles and has sufficient space for the panel, cable management, and future expansion . Gather all necessary tools and materials, including the fiber optic panel, mounting brackets, screws, anchors, fiber cables, connectors, and termination tools .

Mounting the Panel

1. Mark the Mounting Location: Use a level to mark the panel's position on the wall, ensuring it is accessible for cable routing and maintenance .
2. Install Anchors or Brackets: Depending on the wall type, install appropriate anchors or brackets to support the panel's weight and prevent vibration .
3. Secure the Panel: Attach the fiber optic panel to the wall using screws or bolts, ensuring it is firmly fixed and level .

Cable Routing and Management

• Route fiber optic cables along designated pathways, maintaining proper bend radius to prevent signal loss or damage .
• Use cable management accessories such as trays, clips, or ties to organize cables neatly and provide strain relief .
• Ensure cables are labeled for easy identification and future troubleshooting .

Termination and Connectorization

• Decide whether to splice or terminate the fibers. Splicing joins fibers permanently, while termination attaches connectors for easy equipment connection .

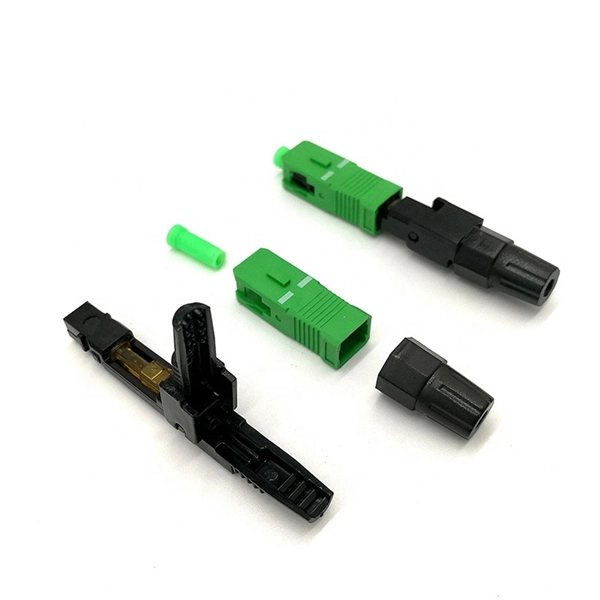

• For connector termination, carefully strip, clean, and polish fiber ends before attaching connectors using specialized tools .
• Perform visual inspection with a fiber microscope to check for defects or contamination on connector end faces .

Testing and Verification

• Conduct insertion loss testing to measure signal attenuation and ensure it meets industry standards .
• Perform return loss testing to verify minimal signal reflection and efficient transmission .
• Document all cable routes, termination points, and test results for certification and future maintenance .

Safety and Compliance

• Wear appropriate personal protective equipment (PPE) during installation .
• Follow industry standards such as FOA guidelines and local electrical codes to ensure safe and reliable installation .
• Avoid excessive tension or bending of fibers to prevent damage during installation . By following these steps, a surface-mounted fiber optic panel can be installed securely, with organized cable management, proper termination, and verified performance for high-speed, reliable connectivity.
