Connecting fiber optic cables into an equipment room requires careful planning, proper routing, precise termination, and thorough testing to ensure optimal network performance.

Planning and Preparation

Before installation, conduct a site survey to identify all endpoints, equipment racks, and potential obstacles such as HVAC ducts or steel beams. Ensure compliance with local building codes and fire safety regulations, and leave extra conduit space (25–40%) for future expansion . Select the appropriate fiber type (single-mode for long distances, multi-mode for shorter distances) and connector type (LC, SC, ST) based on equipment compatibility .

Routing and Cable Management

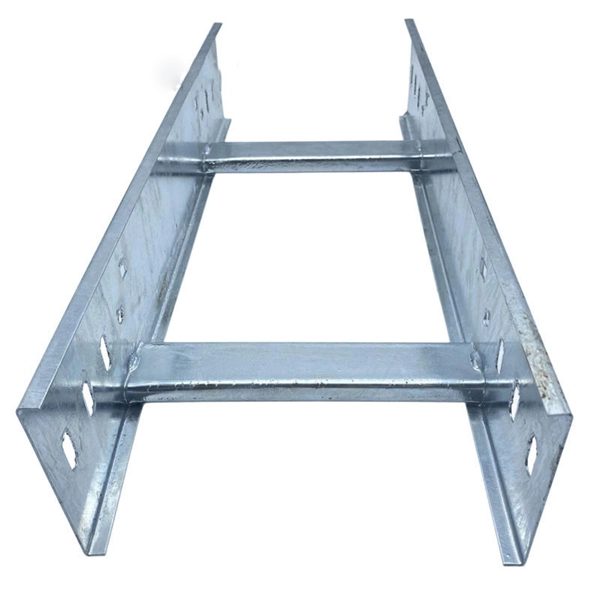

Route fiber optic cables along ladder racks, cable trays, or conduits to prevent crushing or sharp bends. Use innerducts or flexible conduits for protection, especially in vertical risers or areas with potential mechanical stress . Maintain the minimum bend radius specified by the manufacturer and avoid exceeding the maximum pulling tension to prevent fiber damage . Secure cables with velcro straps or cable ties and separate them from power cables to reduce interference .

Termination and Connection

1. Prepare the fiber ends using a cleaver to achieve precise cuts.
2. Clean connectors and ports with specialized cleaning tools to remove dust or debris .
3. Splice fibers using a fusion splicer for permanent connections or attach connectors using a connector kit.
4. Insert connectors into the equipment ports, ensuring they click securely and are properly aligned .
5. Lock connectors in place to maintain a stable connection.

Testing and Verification

After connecting, test the fiber optic network using visual fault locators or Optical Time Domain Reflectometers (OTDRs) to check for breaks, signal loss, or misalignment . Verify signal strength and performance to ensure reliable operation.

Safety Considerations

Wear gloves and safety glasses to protect against glass shards. Follow industry standards such as ANSI/TIA/EIA and NEC Article 770 for safe installation . Ensure the installation area is dust-free and stable to prevent disturbances during handling.

Maintenance and Documentation

Label all fiber runs clearly and maintain a cable management plan for easy troubleshooting and future upgrades. Keep records of cable types, connector types, and test results to ensure long-term reliability . By following these steps—planning, routing, terminating, testing, and managing fiber optic cables—you can achieve a secure, high-performance connection in your equipment room.
