A splitter port is a connection point on a device that divides a single input signal into multiple outputs, allowing multiple devices to share the same source.

Overview

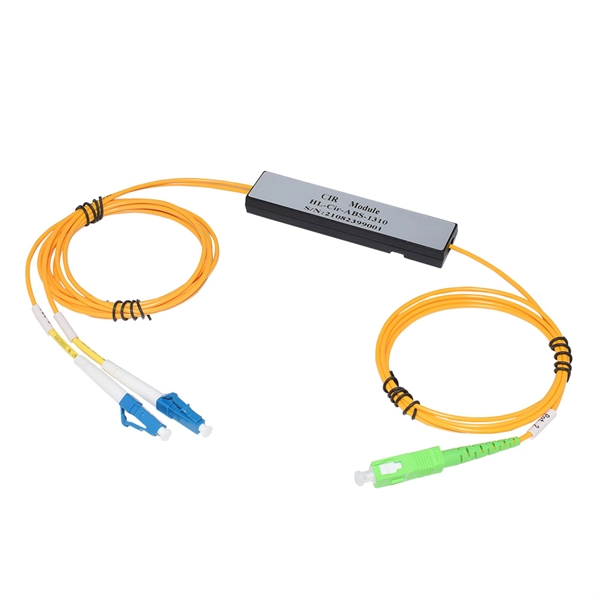

A splitter port is commonly used in networking and signal distribution to split one physical connection into multiple outputs. In Ethernet networks, a splitter port allows two devices to share a single Ethernet cable by reallocating the cable's wire pairs, typically for 10/100 Mbps connections. This requires a matching splitter at both ends of the cable to separate the signals back into individual connections, and it does not increase bandwidth or add extra ports on a router or switch . Gigabit Ethernet cannot use a passive splitter because it requires all four wire pairs, so using a splitter in such setups can reduce speed or fail entirely . In fiber-optic networks, a splitter port refers to a power splitter that divides an optical signal from one input into multiple outputs. Each output receives a portion of the original signal's power according to the split ratio (e.g., 1x2, 1x4, 1x32). This is essential in Passive Optical Networks (PONs) to distribute bandwidth to multiple customers from a single fiber line. The power of each output is reduced proportionally, but as long as the optical network terminal (ONT) receives sufficient power, the bandwidth available to each user is unaffected .

Applications

• Ethernet Splitter Ports: Useful in homes or offices where running additional cables is difficult, allowing two devices to share a single cable run for low-speed connections .
• Fiber Splitter Ports: Used by ISPs to distribute optical signals to multiple subscribers efficiently, reducing the need for additional fiber lines and minimizing deployment costs .
• Video/Media Splitters: In AV setups, splitter ports allow a single video source to feed multiple displays, supporting resolutions up to 4K and HDR in modern devices .

Key Considerations

• Splitter ports do not increase total bandwidth; they divide the existing signal.
• Two splitters are usually required for Ethernet: one to combine signals and one to separate them.
• In fiber networks, the split ratio affects signal strength, so careful planning is needed to ensure adequate power at each output.
• Splitter ports are ideal for space efficiency, temporary setups, or situations where adding new cables is impractical. In summary, a splitter port is a practical tool for sharing a single connection across multiple devices, whether in Ethernet, fiber-optic, or media distribution systems, but it comes with limitations in speed, power, or signal strength depending on the technology used.
